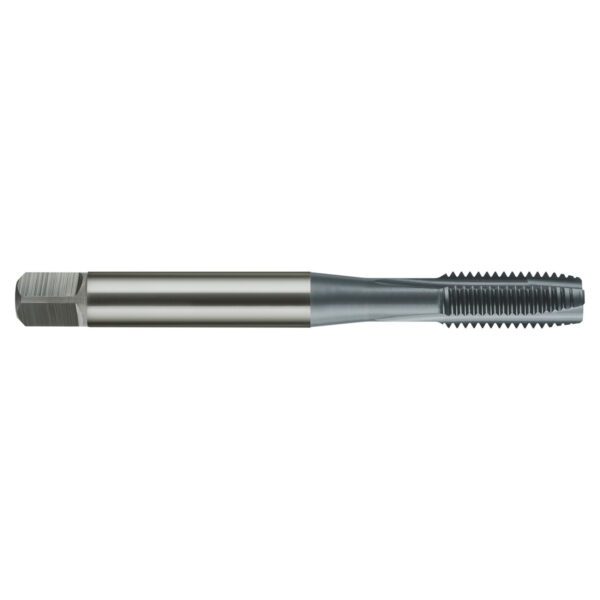

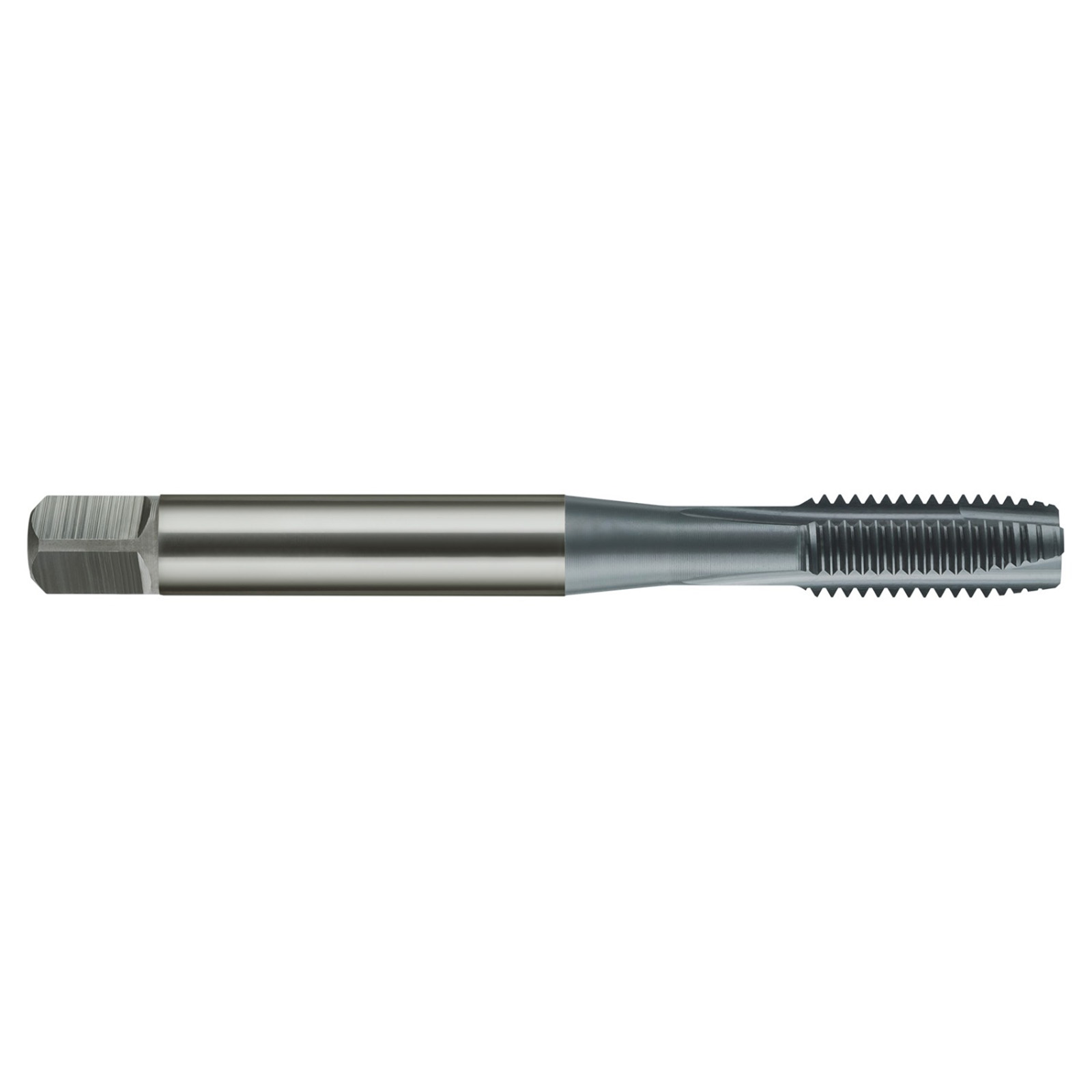

T844 – Tap 6HX B GUN NH+ DIN374 PM-Co TiCN
£90.67
Gun Tap 6HX B PM-Co TiCN
Available October 2025
Range
Features
Materials & Applications
Range

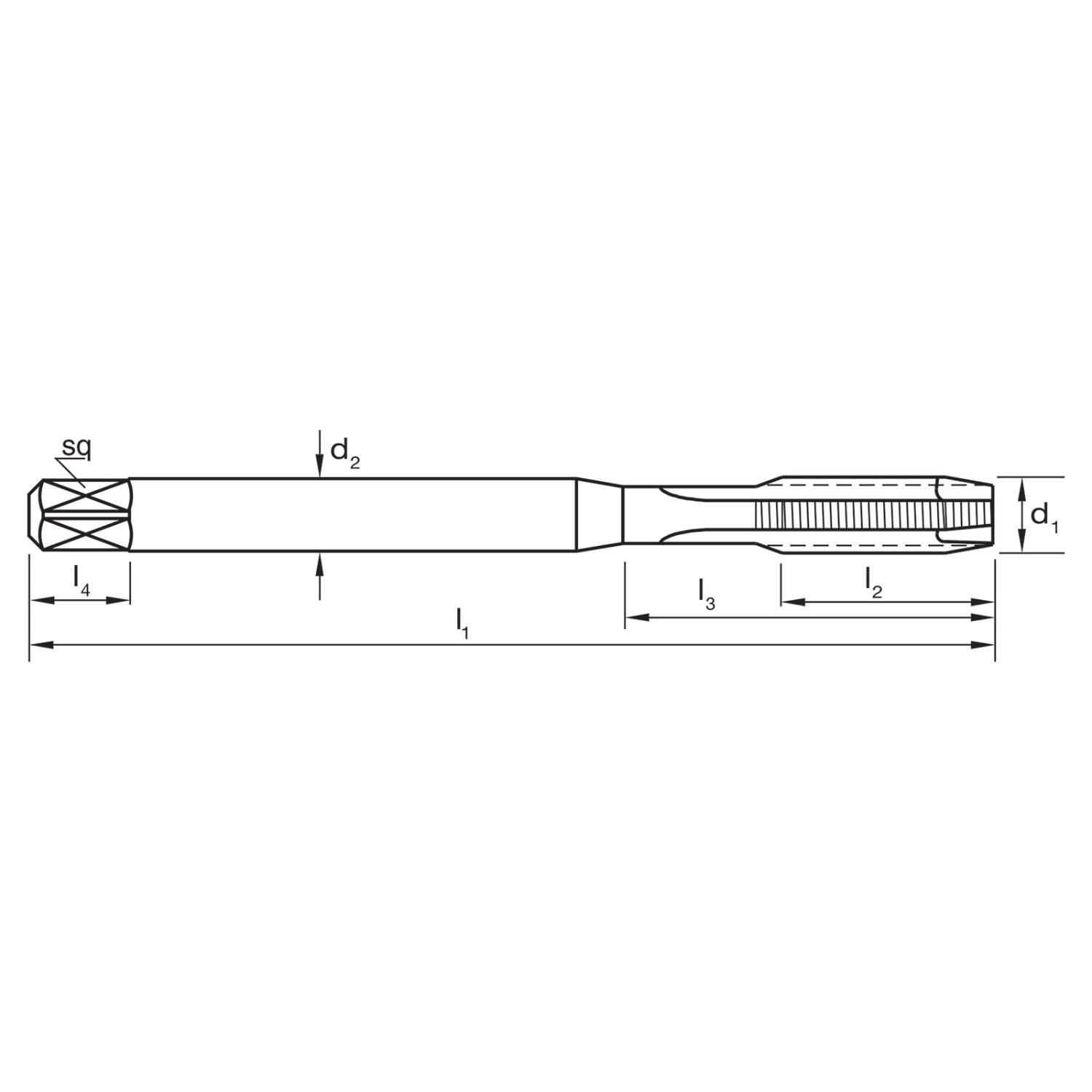

For technical drawing downloads click on the Item # link
| Item # | D1 Ø | Pitch | L1 OAL | L3 Reach | D2 | Square | L4 Sq Length | Z Teeth | Drill Ø | Price | Stock | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T8441005 | MF10 | x 1.0 | 90 | 7.0 | 8 | 3 | 9.0 | £119.89 | Out of stock | |||
| T8441006 | MF10 | x 1.25 | 100 | 7.0 | 8 | 3 | 8.8 | £117.47 | Out of stock | |||
| T8441205 | MF12 | x 1.0 | 100 | 9.0 | 10 | 3 | 11.0 | £156.74 | Out of stock | |||
| T8441206 | MF12 | x 1.25 | 100 | 9.0 | 10 | 3 | 10.8 | £90.67 | Out of stock | |||
| T8441207 | MF12 | x 1.5 | 100 | 9.0 | 10 | 3 | 10.5 | £142.53 | Out of stock | |||
| T8441405 | MF14 | x 1.0 | 100 | 11.0 | 12 | 3 | 13.0 | £198.66 | Out of stock | |||
| T8441406 | MF14 | x 1.25 | 100 | 11.0 | 12 | 3 | 12.8 | £192.89 | Out of stock | |||
| T8441407 | MF14 | x 1.5 | 100 | 11.0 | 12 | 3 | 12.5 | £187.11 | Out of stock | |||
| T8441607 | MF16 | x 1.5 | 100 | 12.0 | 12 | 3 | 14.5 | £206.75 | Out of stock | |||
| T8442007 | MF20 | x 1.5 | 125 | 16.0 | 15 | 4 | 18.5 | £364.98 | Out of stock |
Features
TAP T844 6HX B GUN NH+ DIN374 PM-Co TiCN DIN Taps Metrc Fine, Spiral Point (Gun) Suitable for harder materials up to 42 HRC Through holes Depths up to 3 x d1
Materials & Applications
Through Hole Related Products
