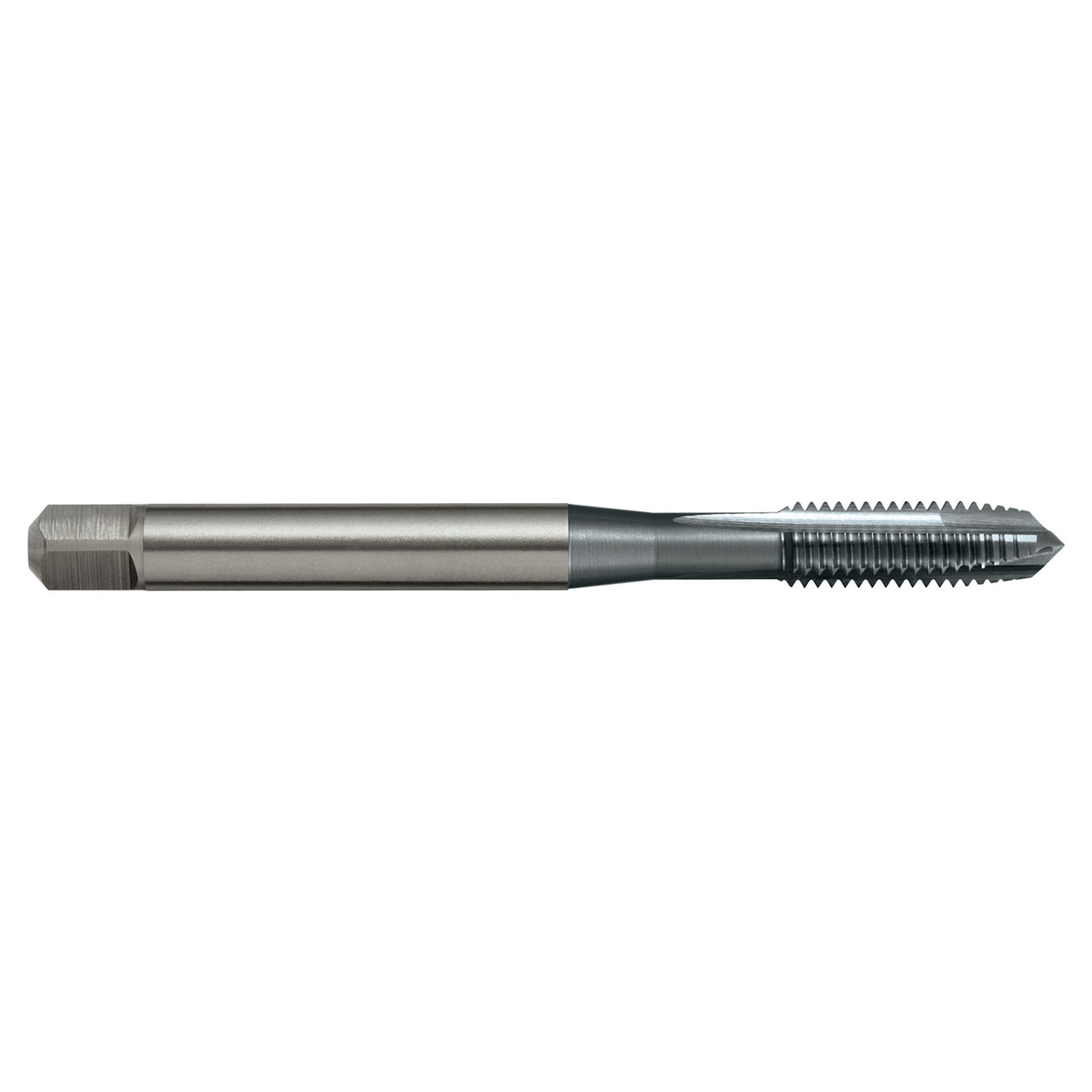

T846 – Tap 2BX B GUN NH+ DIN2184-1 PM-Co TiCN
£48.2
Gun Tap 2BX B PM-Co TiCN
Available December 2025
Range
Features
Materials & Applications
Range

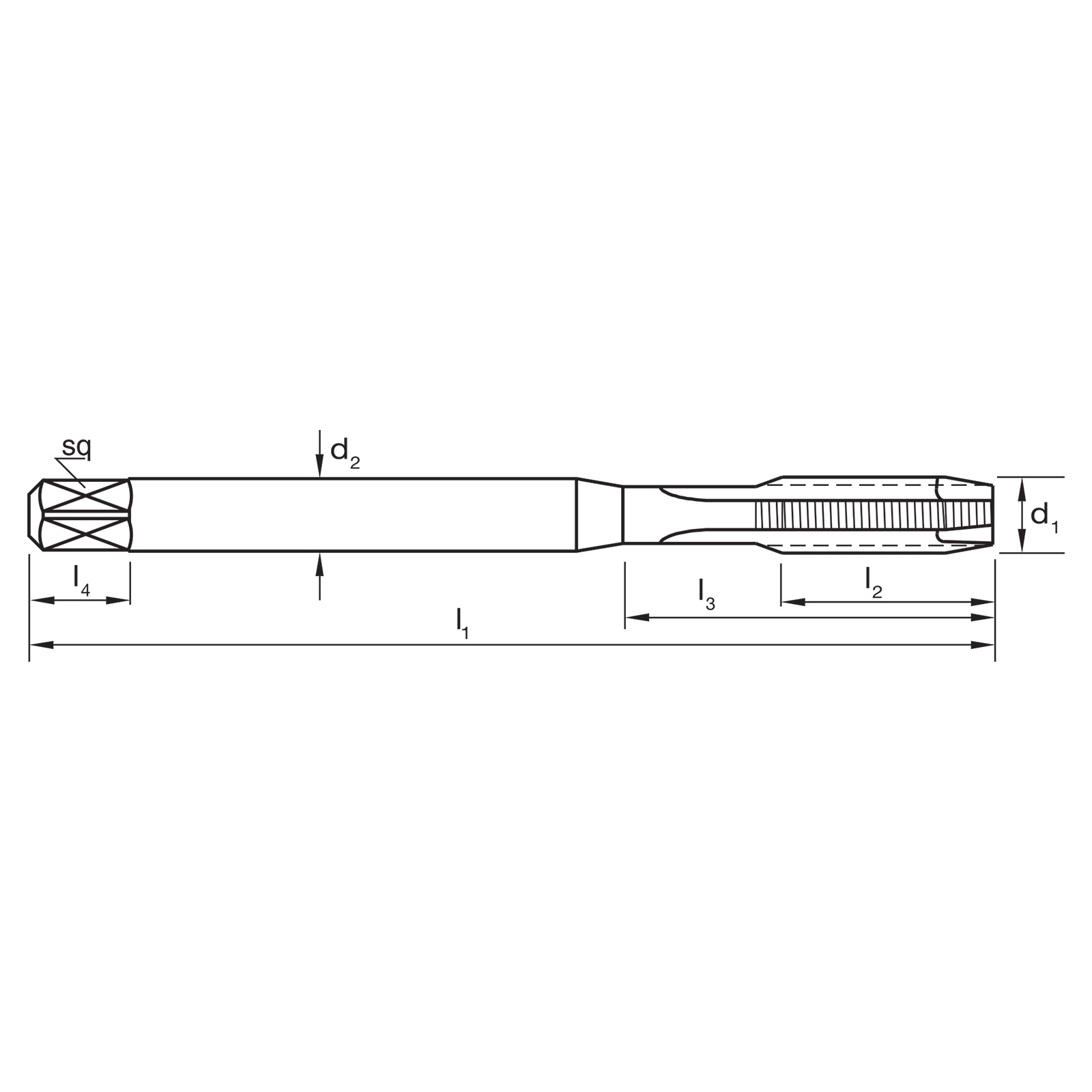

For technical drawing downloads click on the Item # link
| Item # | D1 Ø | Pitch | L1 OAL | L3 Reach | D2 | Square | L4 Sq Length | Z Teeth | Drill Ø | Price | Stock | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T8470635 | 1.4 | 20.0 | 80 | 30 | 7.0 | 8 | 3 | 5.1 | £58.90 | Out of stock | ||
| T8470794 | 5/16 | 18.0 | 90 | 34 | 8.0 | 9 | 3 | 6.6 | £61.40 | Out of stock | ||
| T8470953 | 3.8 | 16.0 | 100 | 35 | 10.0 | 10 | 3 | 8.0 | £62.80 | Out of stock | ||
| T8471270 | 1.2 | 13.0 | 110 | 9.0 | 10 | 4 | 10.8 | £81.80 | Out of stock | |||
| T8471588 | 5.8 | 11.0 | 110 | 12.0 | 12 | 4 | 13.5 | £118.00 | Out of stock | |||
| T8471905 | 3.4 | 10.0 | 125 | 14.0 | 14 | 4 | 16.5 | £150.00 | Out of stock | |||
| T8472540 | 1 | 8.0 | 160 | 18.0 | 17 | 4 | 22.2 | £265.00 | Out of stock |
Features
TAP T847 2BX C R45 NH+ DIN2184-1 PM-Co TiCN DIN Taps UNC, Spiral Flute (R45) Suitable for harder materials up to 42 HRC Blind holes Depths up to 3 x d1
Materials & Applications
