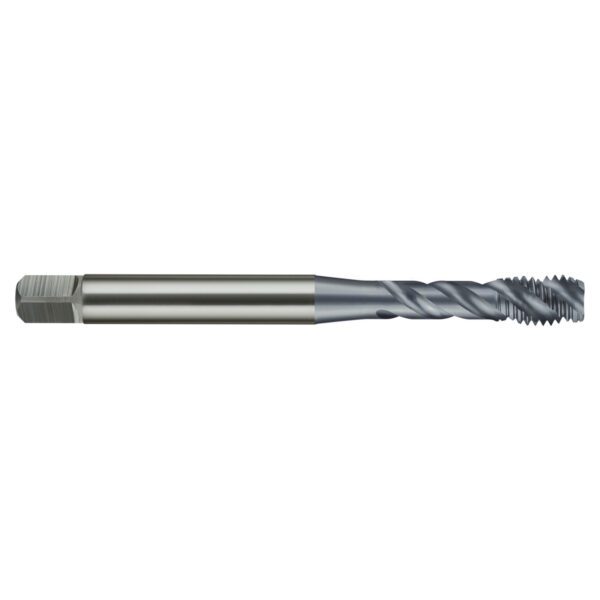

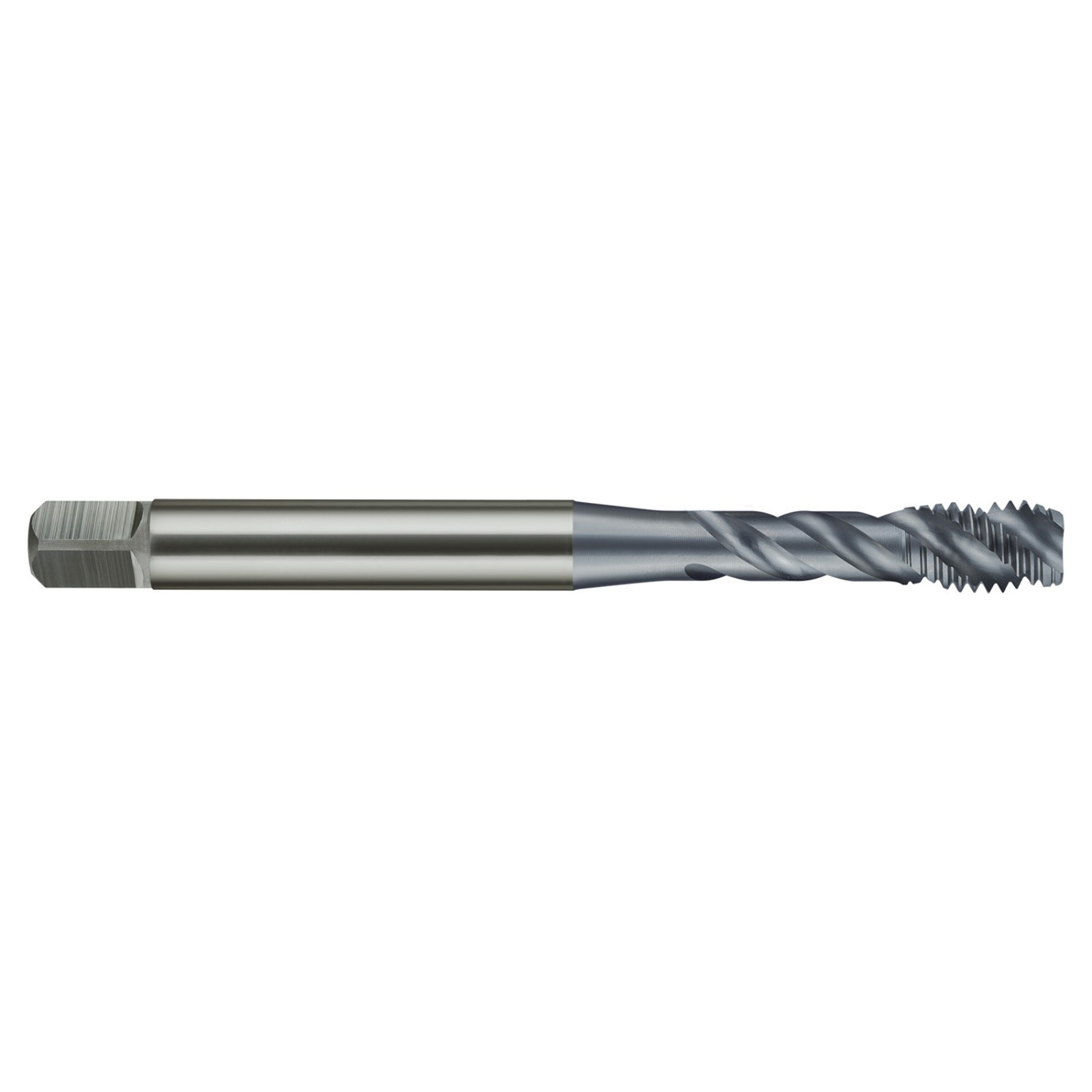

T843 – Tap 6HX C R45 NH+ DIN376 PM-Co TiCN
£77.95
R45 Tap 6HX C PM-Co TiCN
Range
Features
Materials & Applications
Range

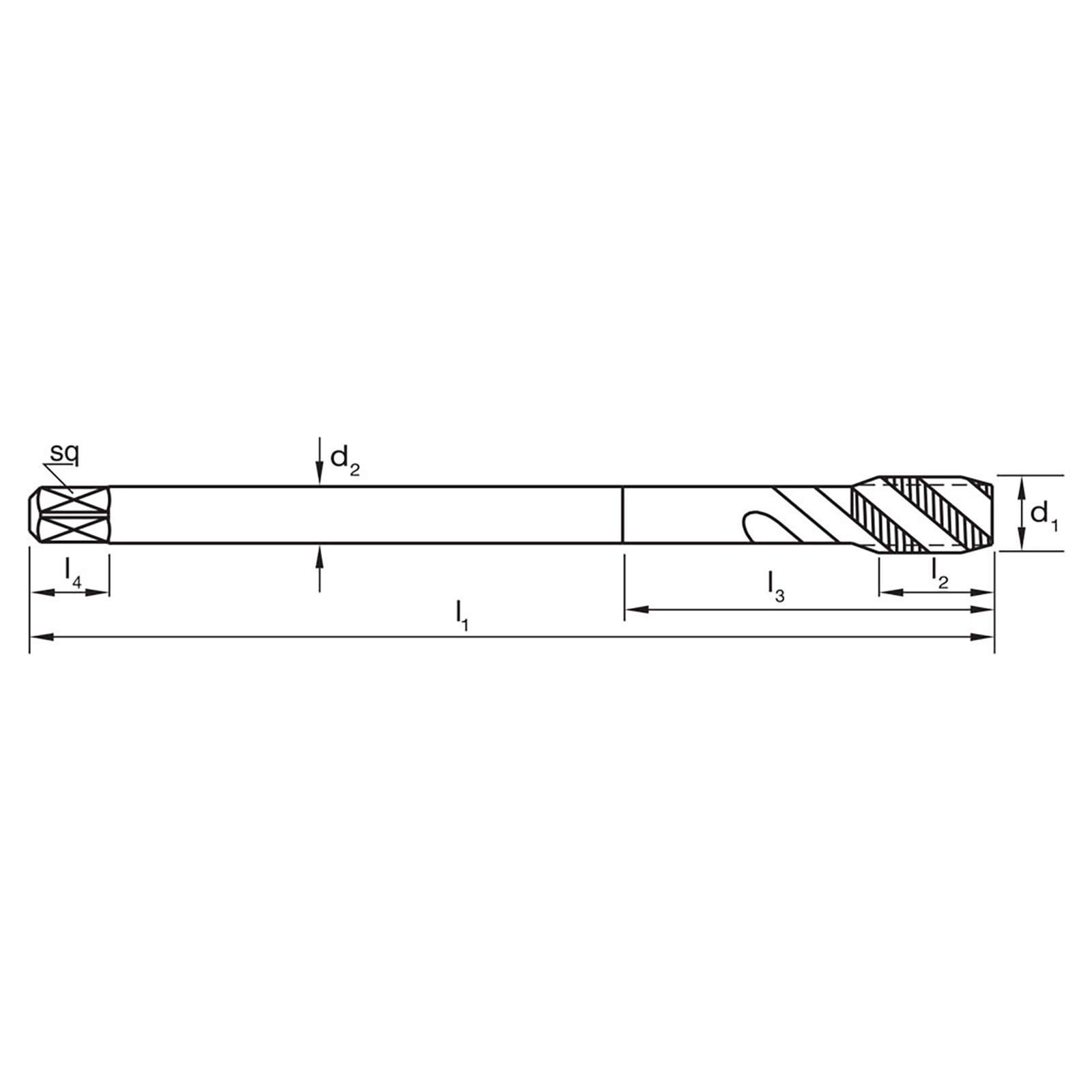

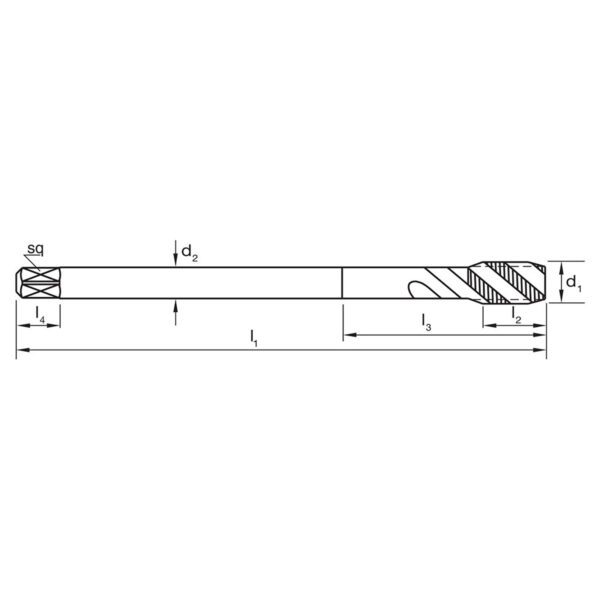

For technical drawing downloads click on the Item # link
| Item # | D1 Ø | Pitch | L1 OAL | L3 Reach | D2 | Square | L4 Sq Length | Z Teeth | Drill Ø | Price | Stock | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T8431200 | M12 | x 1.75 | 110 | 9.0 | 10 | 3 | 10.2 | £77.95 | 38 in stock | |||
| T8431400 | M14 | x 2.0 | 110 | 11.0 | 12 | 3 | 12.0 | £95.92 | 10 in stock | |||
| T8431600 | M16 | x 2.0 | 110 | 12.0 | 12 | 4 | 14.0 | £113.89 | 15 in stock | |||
| T8432000 | M20 | x 2.5 | 102 | 16.0 | 15 | 4 | 17.5 | £188.97 | 5 in stock | |||
| T8432400 | M24 | x 3.0 | 160 | 18.0 | 17 | 4 | 21.0 | £290.29 | 3 in stock |
Features
TAP T843 6HX C R45 NH+ DIN376 PM-Co TiCN DIN Taps Metrc, Spiral Flute (R45) Suitable for harder materials up to 42 HRC Blind Holes Depths up to 3 x d1
Materials & Applications
Blind Hole Related Products
